Barrial standard free-standing is a permanent system for protection against falling from height, which meets all statutory constraints.

Barrial standard free-standing is in compliance with NF E 85-015.
It is also in compliance with the French regulation regarding the permanent safety for protection from falling from a height, according to the decree n°2004-924 from September 1st 2004 (Art. R.233-13-20).

The main assets of the system


  • Installation without piercing the waterproofing
  • No thermal bridge
  • Lacquered aluminum finish
  • Quick installation (only 3 tightenings)
  • Available from stock in untreated aluminum
  • Counterweight guaranteed 10 years

Barrial video presentation

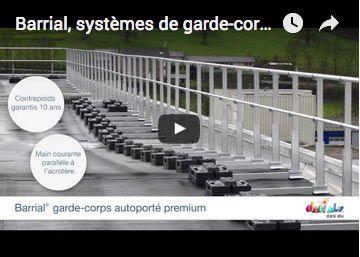

This video shows the system presentation and all the Barrial range possibilities.
barrial-autoporte-systeme-gardecorps-leste-aluminium-toiture-terrasse-securite-chutes-contrainte-rabattable-contrepoids-mains-courantes-innaccessible-securisation-montants-assemblage

System components

barrial-autoporte-systeme-gardecorps-leste-aluminium-toiture-terrasse-securite-chutes-contrainte-rabattable-contrepoids-mains-courantes-innaccessible-securisation-montants-assemblage
Barrial standard free-standing is made up of a handrail, a post (straight, curved or angled), an intermediate rail, a skirting (if necessary), a jointing sleeve, a track and a barrilest counterweight.

Posts


Barrial standard free-standing posts are available :

  • straight
  • 15° angled
  • 30° angled
  • 45° angled
  • curved

In stock : 30° angled and straight posts with fixed height, untreated aluminum finish.

barrial-autoporte-systeme-gardecorps-leste-aluminium-toiture-terrasse-securite-chutes-contrainte-rabattable-contrepoids-mains-courantes-innaccessible-securisation-montants-assemblage

barrial-autoporte-systeme-gardecorps-leste-aluminium-toiture-terrasse-securite-chutes-contrainte-rabattable-contrepoids-mains-courantes-innaccessible-securisation-montants-assemblage

Clamps : quick and practical tightening


  • Clamps are preinstalled int he factory for a quick installation in compliance with the norm
  • Installation of handrails and intermediate rails without risk of scratching
  • Easily adjustable on construction site without dismantling, done with only one tool

Sleeve


Quick and practical installation due to :

  • A mono-fixing assembly sleeve.
  • An adjustable height of the post (amplitude 30 mm).
barrial-autoporte-systeme-gardecorps-leste-aluminium-toiture-terrasse-securite-chutes-contrainte-rabattable-contrepoids-mains-courantes-innaccessible-securisation-montants-assemblage

barrial-autoporte-systeme-gardecorps-leste-aluminium-toiture-terrasse-securite-chutes-contrainte-rabattable-contrepoids-mains-courantes-innaccessible-securisation-montants-assemblage

Ballast systems


Barrial standard free-standing can be installed with two ballast systems, designed to preserve the waterproofing membrane.

Barrilest 12.5, counterweight of 12,5 kg


  • Made of recycled material and is recyclable
  • Guaranteed for 10 years
  • Dimensionins in compliance with DTU 43.1
  • Preserves waterproofing
  • Stackable, for a better storage
  • Two integral handles and weight of 12,5 kg for a safe and ergonomic transport
  • Quick installation : fixing on the track with a self-drilling screw

Bacdal


Tray made of polymer (Polypropylene-copolymer), able to support a concrete slab of minimum 25kg (not provided), allowing a clean finish.

Ideal to create a perimeter marking or japanese path on vegetalised flat roofs.

barrial-autoporte-systeme-gardecorps-leste-aluminium-toiture-terrasse-securite-chutes-contrainte-rabattable-contrepoids-mains-courantes-innaccessible-securisation-montants-assemblage

Handrail, intermediate rail and accessories

barrial-autoporte-systeme-gardecorps-leste-aluminium-toiture-terrasse-securite-chutes-contrainte-rabattable-contrepoids-mains-courantes-innaccessible-securisation-montants-assemblage
Handrails are Ø 45 mm
Intermediate rails are Ø 35 mm

Skirting option


When the height of the parapet wall is below 100 mm, the norm demandes a skirting implementation.
Skirting is easily installed thanks to a clamp adapted to the sleeve.
barrial-autoporte-systeme-gardecorps-leste-aluminium-toiture-terrasse-securite-chutes-contrainte-rabattable-contrepoids-mains-courantes-innaccessible-securisation-montants-assemblage
