Purpose

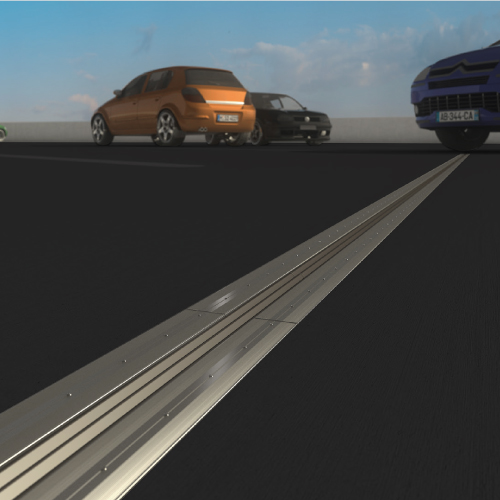

Dilat® 40/60 is a mechanical protection system for expansion joints to waterproof car parks with asphalt or covered tread.


The effectiveness of the sealing depends on the manufacturing of the expansion joints sealing complex.

Dilat® aims to ensure a confortable mechanical durability, and making it tread resistant for vehicles.
dilat-systeme-protection-mecanique-joint-dilatation-aluminium-parking-etanche-etancheite-asphalte-enrobe-etanches-joints

dilat-systeme-protection-mecanique-joint-dilatation-aluminium-parking-etanche-etancheite-asphalte-enrobe-etanches-joints

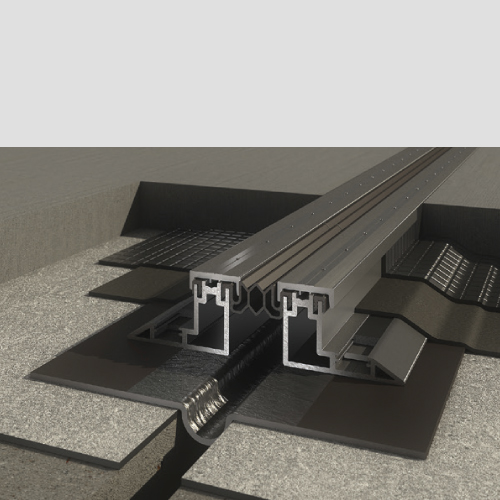

Suitable uses


This mechanical expansion joint protection system ensures the expansion points are sealed and absorb the effects of expansion.

This system is usable for roofs, terraces and flooring accessed by vehicles (at a speed lower than 20kph) and pedestrians.

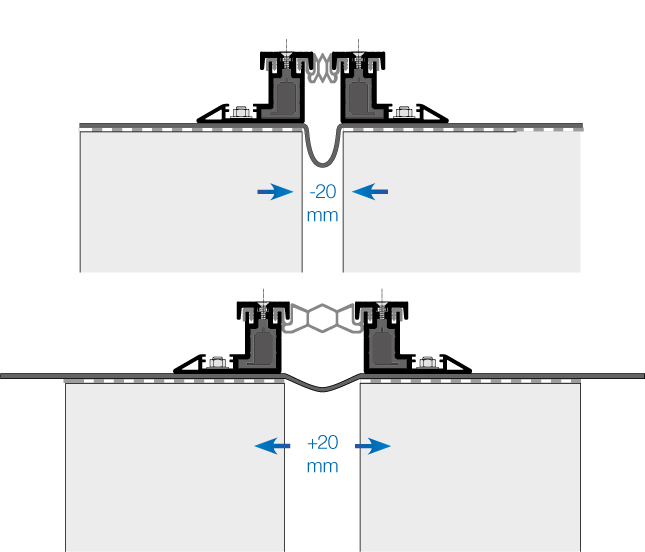

It is made for joints with movement ≤ 20 mm in traction, compression, shearing or compaction.

Dilat® is suitable for waterproof car parks with asphalt or covered tread, of :
  • roof-terraces accessed by light vehicles
  • roof-terraces accessed by heavy vehicles
  • interiors accessed by light/heavy vehicles

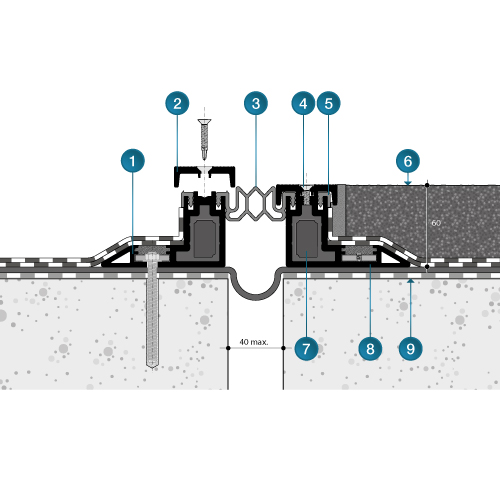

Technical description


Dilat® 40/60 is made of :


  • Aluminium pieces (max length 3 000 mm) : 2 basic pieces and 2 clamping covers
  • Elastomer pieces (max length 30 m) : 1 central joints and 2 lateral joints

The system contains junction accessories as well as assembly screws.

Sections and connections can be made on-site-, if needed.  Dilat® 40/60 is made with chemical anchors M 8 (20 fixing for each 3 m of length), which is not provided.
dilat-systeme-protection-mecanique-joint-dilatation-aluminium-parking-etanche-etancheite-asphalte-enrobe-etanches-joints

Special parts

dilat-systeme-protection-mecanique-joint-dilatation-aluminium-parking-etanche-etancheite-asphalte-enrobe-etanches-joints

Special parts

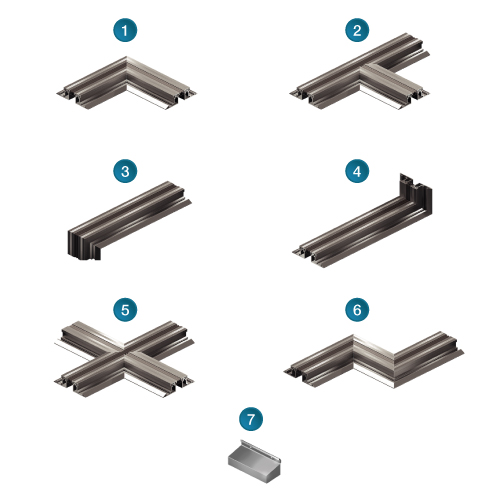

Prefabricated special parts are tailored-made depending on the construction site (corner piece, T-shaped piece, cross-shaped piece, Z-shaped piece, raised piece, downstand piece).
