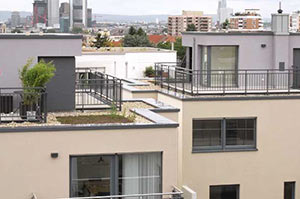

Panorama : guardrail system for balconies and accessible roof-terraces

System Overview

Panorama is an aluminum railing system:

In compliance with standards NF 01-012 and NF 01-013,
Meets the Eurocodes categories A and B.

For requirement with categories C1 to C4, please contact us.

It is suitable for both roof terraces and balcony. The system is delivered to measure with a lay-out plan.

The advantages of Panorama

Filling masking the uprights
Aesthetic finish with a wide range of models and RAL colors
Tailor-made delivery with charting plan
Quick and practical assembly with pre-assembled modules

standards

Panorama meets the standards :

NF P 01-012 (Railing dimensions)
NF P 01-013 (Tests: method and criteria)
NF P 06-111-2 / A1 (National Annex to Eurocode 1)

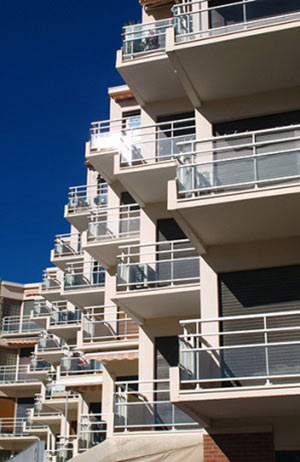

BIM

For your BIM projects, dani alu offers a range of Panorama® guardrails (Vision series only) in Revit® format.1)

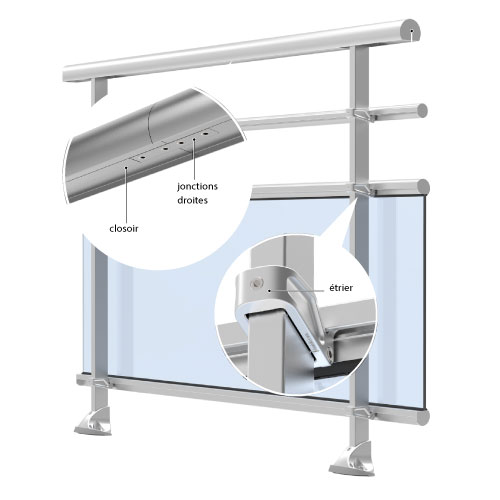

Accessories

The Panorama system has been designed with a discrete and practical aesthics.

Stirrup
The stirrup has a side screw to be pre-positioned which facilitates the assembly of intermediate rails and filling modules.
The junctions
The junction parts are designed to fit into the alignment of the profiles.
The closure
A closure fits into the lower throat of the handrail for a perfect finish.
The tips
Tips are available to ensure the finishing of all handrails and smooth models.

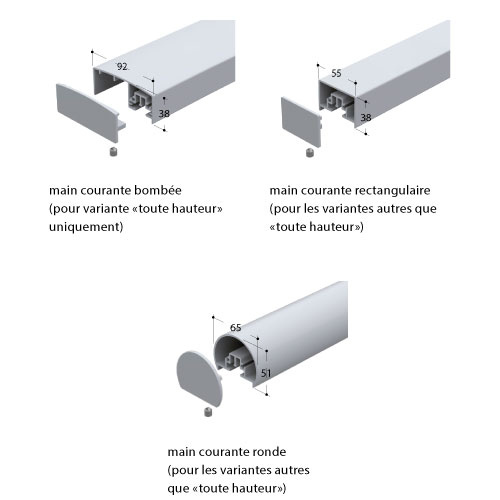

Handrails

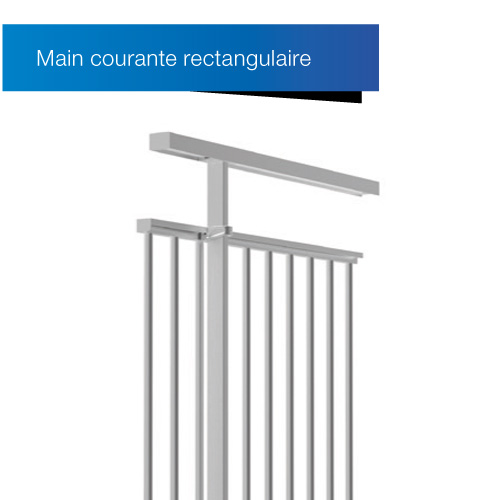

The rectangular handrail is available for all fills with vacuum under handrail. They also work with the intermediate and smooth rail of rectangular filling (combination with round model possible on request).

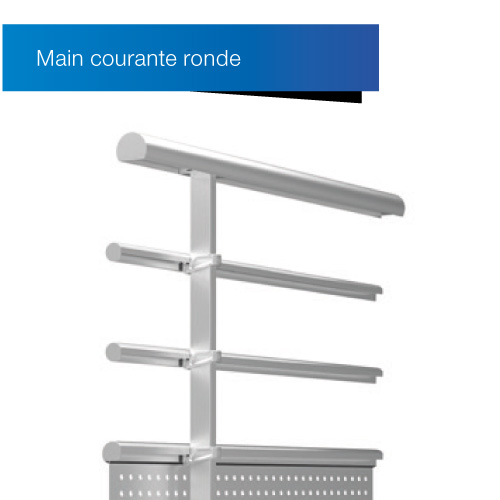

The round handrail is available for all fills with vacuum under handrail.
They also work with the intermediate and smooth rail of rectangular filling (combination with round model possible on request).

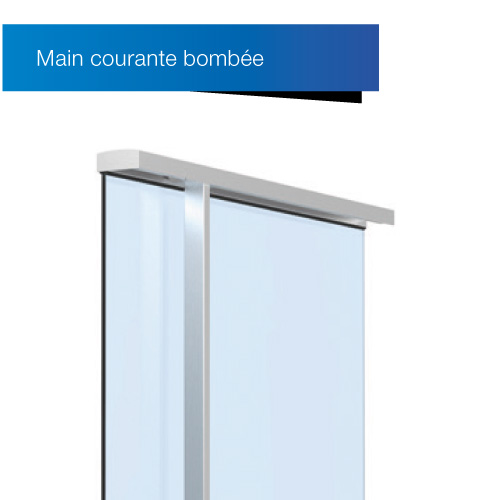

The curved handrail can reach a full height, with either a glazed or barred filling. It comes with the lower part by a rectangular filler.

Fixings

Shoe B with hold.

The shoe B is fixed on a slab or on a low wall. It adjusts the handrail vertically and horizontally. A wedge fits the hoof for an aesthetic finish.

She allows to :

Hide adjustment screws
Propose a rigid support

The hold is perforated to enable runoff of rainwater.

Adjusting the length of guardrail is possible with 2 screws over a range of ± 4.5 °.
Adjusting the height of the upright reaches up to 10mm.

Shoe A5

The A5 shoe is positioned in the nose of the slab, and the inside or outside a low wall.

This fixing allows movement in front of the slab nose.

Shoe A60

The A60 shoe is the perfect technical solution for a combination with the Couvernet system.

Shoe Z under coping

The Z-shoe is attached to the top avoiding any drilling of the seal .
It makes it possible to make an inaccessible roof terrace accessible. It is suitable for the majority of roof-terraces when the handrail is too short.
It is compatible with the Covered Covert system.
A specific offset part can be added to adapt the system to the attachment on an insulated acroter (up to 200 mm of insulation complex).

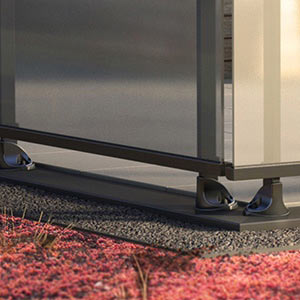

Shoe D

Panorama with hoof D makes it possible to secure an accessible area in roof terrace. It is fixed on the slab with sealing complex.
In accordance with DTU 43.1, a top plate sleeve and a bottom platen sleeve are required for the sealing connection.

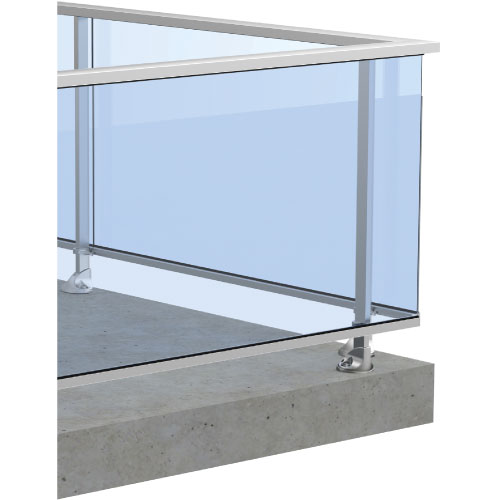

Série Vision - Glass filling

The variants

Full height
Empty under handrail
An intermediate rail
Two intermediate beams

Fillings

Pre-fitting module with laminated glass 44.2 :

Clear glass

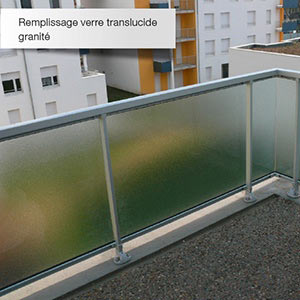

Translucent glass granite
White translucent glass

Other finishes on request.

Handrails

Handrail (for "any height" only)
Rectangular handrail (for variants other than "any height")
Handrail round (for variants other than "any height"

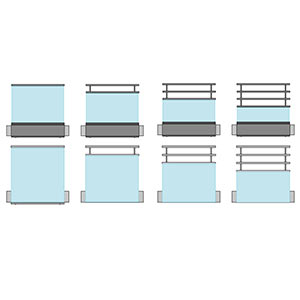

Cover for slab nose

This allows the filling to move in front of the slab nose. Exists in paneling in :

Full height
Empty under handrail
An intermediate rail
Two intermediate beams

Available in glazed :

Full height
Empty under handrail
An intermediate rail
Two intermediate beams

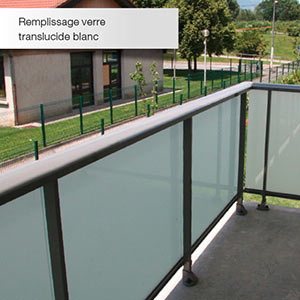

Example of use

Example of use

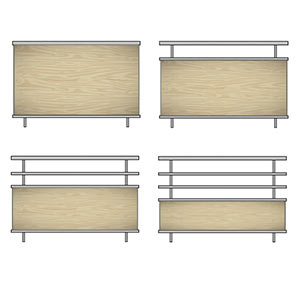

HPL Panel Filling

The variants

Full height
Empty under handrail
An intermediate rail
Two intermediate beams

Fillings

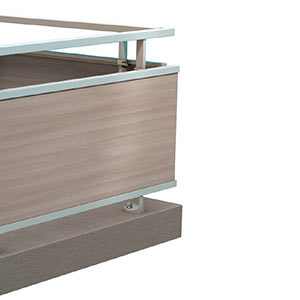

Pre-framed module with HPL panel (high pressure laminate) is 8 mm thick. The HPL panel is opaque and highly resistant, andmeets contemporary architectural requirements. Its design can vary with a range of colours and effects of materials such as wood, metal, etc. on offer.

Handrails

Handrail (for "any height" only)
Rectangular handrail (for variants other than "any height")
Handrail round (for variants other than "any height"

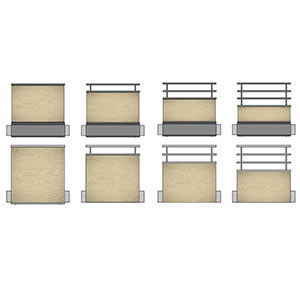

Cover of slab nose

This allows the filling to move in front of the slab nose. Exists in paneling in :

Full height
Empty under handrail
An intermediate rail
Two intermediate beams

Available in HPL en :

Full height
Empty under handrail
An intermediate rail
Two intermediate beams

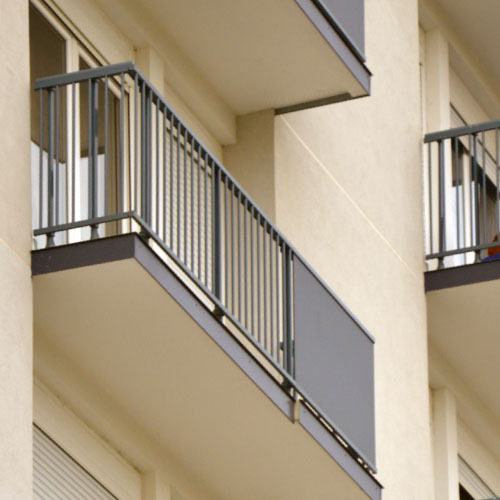

Example of use

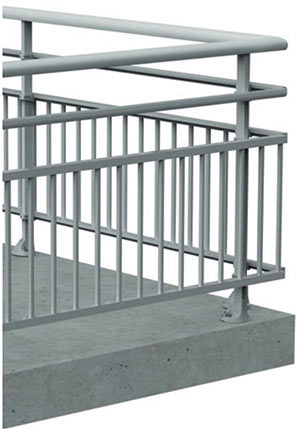

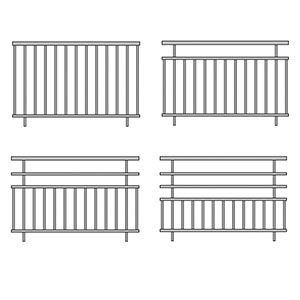

Filled bars

Full height
Empty under handrail
An intermediate rail
Two intermediate beams

Fillings

Pre-framed module with:

Square bars

or round

Handrails

Handrail (for "any height" only)
Rectangular handrail (for variants other than "any height")
Handrail round (for variants other than "any height"

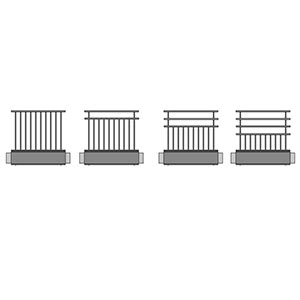

Cover for slab nose

This allows the filling to move in front of the slab nose. Exists in paneling in :

Full height
Empty under handrail
An intermediate rail
Two intermediate beams

Example of use

Perforated sheet filling

Fillings

Perforation is customisable but com 20/10 as standard.

Handrails

Rectangular handrail (for variants other than "any height")
Handrail round (for variants other than "any height")

Standard perforations

round 10 mm
sqarre 10 mm

Customisable perforations

Multiple possibilities for customising the railing.

Cover for slab nose

This allows the filling to move in front of the slab nose.

Exists in paneling enclosed in two intermediate beams

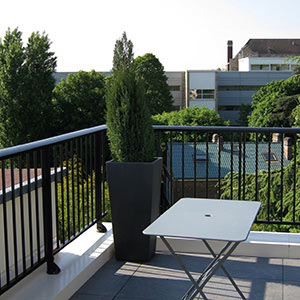

Example of use

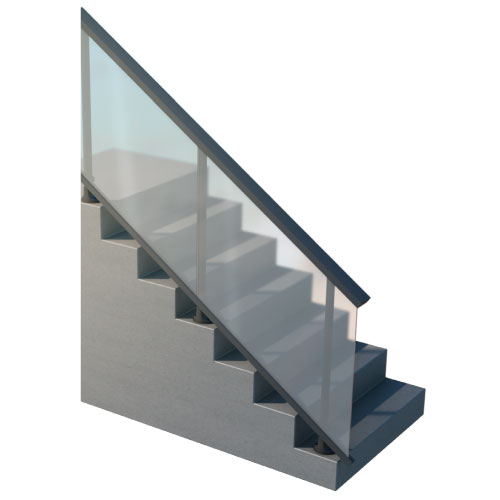

Creeping panorama

Creeping Panorama® is a guardrail to ensure a staircase's safety. It is available in three versions:

vision
decor

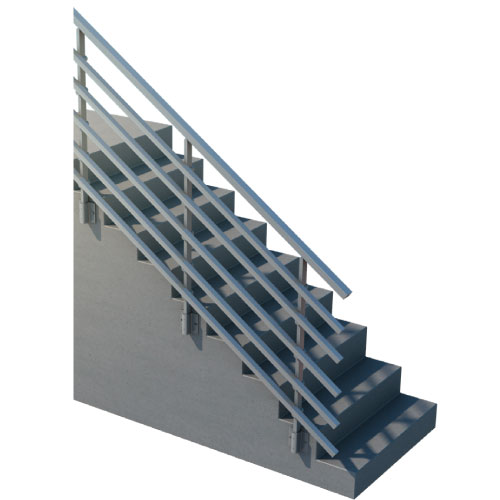

5 intermediate beams

Variations

Full Vision Series
Empty Vision series under handrail
Vision series an intermediate rail
Vision series two intermediate beams
Decor series two intermediate beams
5 intermediate beams

For the Vision series :

Pre-fitting module with laminated glass 44.2:

Clear glass
Translucent glass granite
White translucent glass

Other finishes are available on request.

For the decor series :

Pre-squared module with 20 / 10th perforated sheet filling

5 intermediate beams

Handrails

Convex handrail (for "all-height" only)
Handrail rectangular (for variants other than "any height")
Handrail round (for variants other than "any height")

Creeping Panorama Fixation

The Creeping Panorama® can be fixed on the last or penultimate step.

With the A5 shoe
With the shoe B
Handrail round (for variants other than "any height")

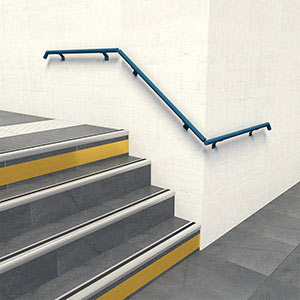

Other applications

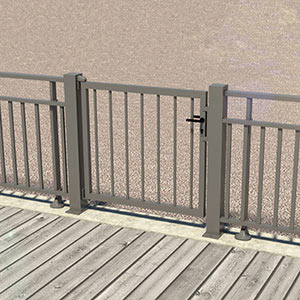

Gate

The Panorama gate allows occasional access to inaccessible areas delimited by a Panorama railing. The gate is available as a bar, with a round or square filling.

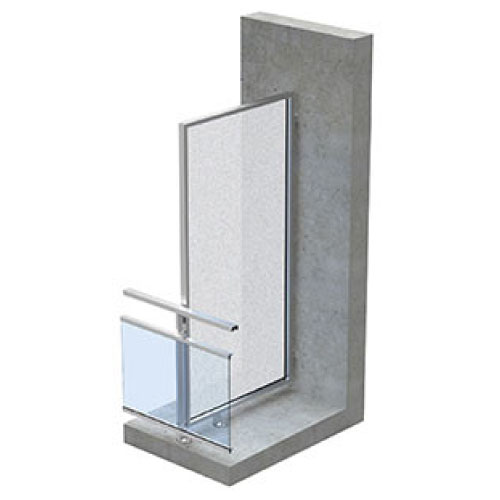

Window Murals

The guardrail is secured to the handrail and in the structural work. The finish is hidden.

Fillings

Pre-fitting module with laminated glass 44.2:

Translucent glass granite
White translucent glass

Other finishes available on request.
