System Overview

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint
Façanet is a system which cover a aluminum facade seal, patented in France and abroad.
Façanet is a range of aluminum profiles. It's function is to protect the expansion joints from the weather.

Elements of the system


The models of Façanet are differentiated by the method of fixing :

  • Fastening by gluing

  • Fastening by gluing with clips

  • Mechanical fixing

  • Mechanical fixing with cover

  • Invisible mechanical fixing


Our variations in profile widths, as well as shapes which are adapted to different angles, allow us to cater to cases of both new construction and repair.
Prefabricated junction parts and crosspieces complete the system.

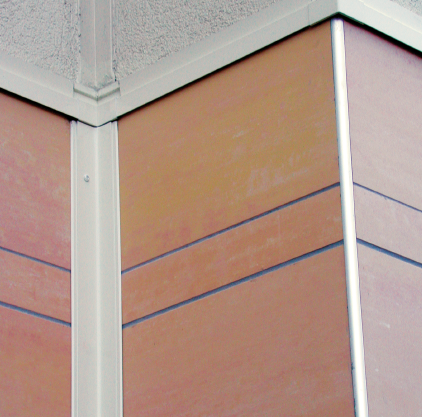

Benefits of Façanet


  • Façanet is simple and fast to implement
  • Many finishes available
    • Crude Alu
    • Natural anodised aluminum
    • Alu lacquered Danilac RAL color choice)


facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint
facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

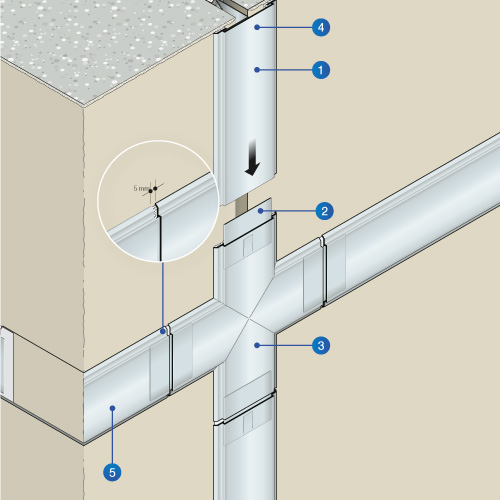

Elements of the system


  1. Extruded aluminum profiles, delivered in 3000 mm elements
  2. Connecting piece
  3. Cross piece (only for Façanet by gluing or gluing with clips)
  4. Fixing by gluing, by bonding with clips or mechanically
  5. Special room

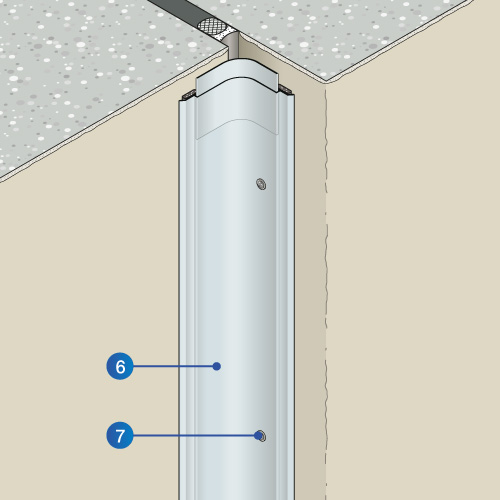

  1. Façanet angle
    Fixation Danivit stainless steel Ø 6
facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Fixing by bonding

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Overview of the range


Façanet 60


Fixing by bonding
facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Example of use Façanet 60


Uses an adhesive sealant with SNJF approval.

Façanet 95


Fixing by bonding
facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Example of use Angle Façanet 95


Use an adhesive sealant with SNJF approval.
facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Fixing by gluing with clips

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Overview of the range


The fixing clips


The stainless steel clips are rotated. There are 4 clips for a length of 3000 mm.
facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Façanet 60


Fixing by gluing with clips

Example of use Façanet 60


Use an adhesive sealant with SNJF approval.
facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Façanet 95


Fixing by gluing with clips

Example of use Façanet 95


Use an adhesive sealant with SNJF approval.
facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Apparent mechanical fixing

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Façanet 75


Attached every 300 mm by screw and Danivit 6 x 40 mm diameter anchor (stainless steel).

Façanet 75


Pre-assembled joint in factory
facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Example of use Façanet 75

Mechanical fixing with cover

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Presentation of the range


The mechanical fastening is protected by a clipped and glued cover.
The 160 model allows to treat wide joints.

Façanet 90 C with cover.

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Façanet 160 C with cover


Example of use Façanet 160 C


Use an adhesive sealant with SNJF approval.
facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Invisible mechanical fixing

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Presentation of the range


This series allows the treatment of important facade joints. The mechanical fixing avoids any stripping having to be done.

Façanet 105


The fixing is done by a Danivit stainless steel 6 x 40 mm knocking screw, unless otherwise indicated. The screw is slid into the groove of the profile and then struck through the profile with a wedge.
facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

facanet-recouvrement-joint-facade-aluminium-protection-dilatation-fixation-enduit-profiles-couvrejoint-cachejoint

Example of use Façanet 105


Use an adhesive sealant with SNJF approval.
