Rivnet 35/80
Rivnet is the registered trade mark of an extruded aluminium roof edging and parapet wall raising piece system.
Rivnet 35/80 is an edging strip characterised by a 80 mm fixing flange.
...Read more
Product description
Rivnet is the registered trade mark of an extruded aluminium roof edging and parapet wall raising piece system.
Rivnet 35/80 is an edging strip characterised by a 80 mm fixing flange.
Technical specifications
Technical specifications
| 3-meter bar | |
| 110 mm | |
| Oblong holes 6x9 mm, Stanchion distance 300 mm | |
| 1,39 kg/ml | |
| Aluminium extrudé | |
| External and Internal angle sleeve, Junction sleeve | |
| 3 working days for mill finish, 10 working days for powder-coated finish | |
| 30/10e. Résiste à la chaleur du chalumeau, enrobé, asphalte) | |
| Diamètre 7 mm tous les 300 mm à 20 mm du bord du profil | |
| Diamètre 7 mm tous les 300 mm à 20 mm du bord du profil | |
| Sainte-Consorce (69) |
Links and related products
Downloads
Implementation (FR):

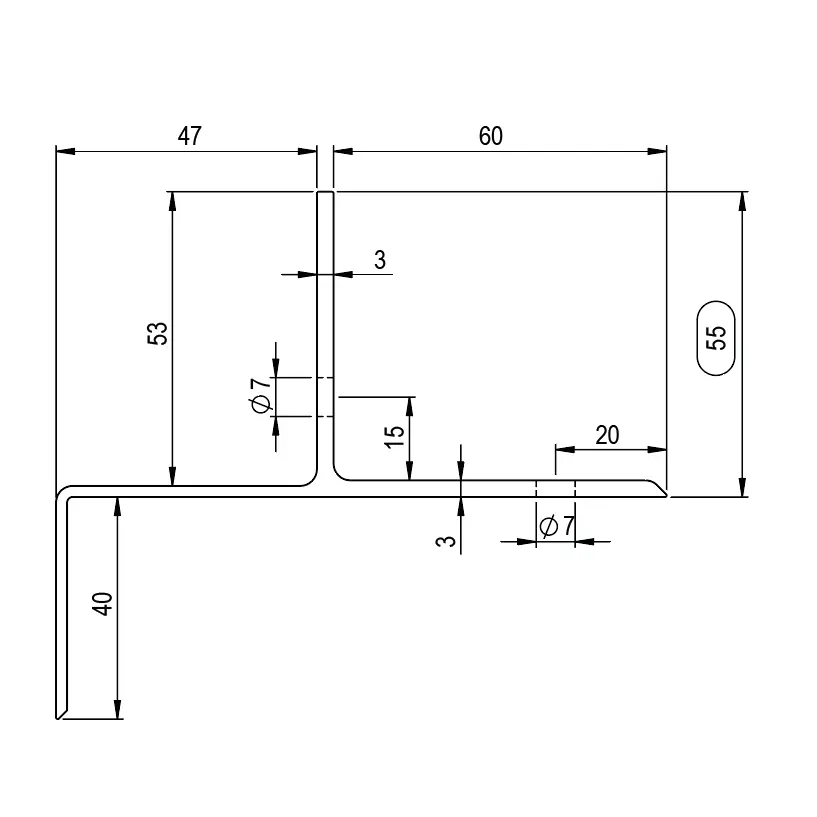

Cross-section (FR): Documentation (EN): BIM (FR):
