Solinet^®

Aluminum flashing systems with technical advice CSTB

Solinet® is the registered trademark of patented aluminum flashing systems in France and abroad.

They are used in the following fields :

• Protection of leakage measurements
• Terraces with tiles on plots
• Public works
• Mechanical fastening of membranes
• Roofing

Solinet^® Insulation Leads

Aluminum flashing system and thermal insulation start system

Solinet® Insulating insulation is installed on the facade of buildings with Thermal Insulation from the outside.
Solinet® Insulation Departure is a patented aluminum system with a dual function:

• It protects the sealing profile in accordance with DTU 20.12
• It forms a starting rail for the insulation on the facade.

Rivnet^®

Aluminum shore edge and riser systems

Rivnet® is the registered trademark of a rib strip system and an extruded aluminum acroter extension.

Rivnet serves as bands of banks :

• The function of sewerage, or discharge of water, allowing the separation of the runoff and the protection of the facade linings
• Stop and connect the waterproofing to the side of the acroter.

Bandonet^®

Aluminum facade and headboard enhancement system

Bandonet® is an aluminum headboard system.
It acts as a stopper for a roof terrace's waterproofing and acts as protection of the facade cladding. If necessary, it can also provide a climber extension. Bandonet® covers the Thermal Insulation by Exterior (ITE) on the facade, even with a large overflow.

Couvernet^®

Aluminum coping systems with rounded or straight edges

Couvernet® is an aluminum coping system. It is characterised by its unsupported guttering piece. In order to guarantee the watertightness and the perfect finish of the system, all the elements are made to measure at the factory, according to the dimensions given on site by the installation company.

Aquadrop^®

Aluminum rainwater collector and descent system

The Aquadrop® range is composed of three products: the collector, the rainwater descent and the protector.

The aesthetic finish and palette of colors make this a decorative element to highlight the architectural style.
Aquadrop® adapts to all types of flat roof buildings.

Origal^®

Aluminum gravel strips and boxes

The Origal® gravel strips are made of 10/10/10 raw aluminum and are delivered in lengths of 2 ml. In addition to the 3 standard predefined dimensions, they can also be made to measure.

The perforations conform to DTU 43.1 (NFP84-204) and DTU 60.11 (NFP40-202).

Dilat^®

Mechanical protection system for expansion joints for sealed car parks

Its function is to ensure a comfortable and resistant mechanical continuity of the surface for vehicles.
Dilat® 40/60 does not guarantee leak-tightness. The waterproofing of the structure depends exclusively on the construction of the sealing complex of the expansion joint.

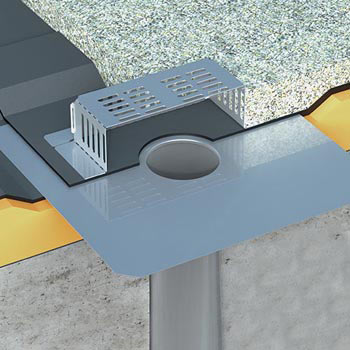

Neepal^®

Roof penetration solutions

The main advantages of the product

• No risk of leakage due to the patented crimping system between the pipe and the plate, without welding
• Compatible with SBS & APP bitumen seals, PVC-type synthetic sealing
• No risk of corrosion

Ventilair^®

Aluminum roof drilling for ventilation

There are two models :

• Ventilair
  (Advantages: Easy installation: aluminum plate - 1 mm thick - conforms to DTU Aluminum tube 2 mm thick)
• Insulated Ventilair with Hat
  (Advantages: insulated with aluminum cap)

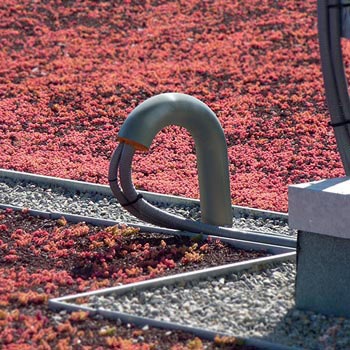

Crossalu^®



Cable spine system for roof terrace

Support bracket cables in aluminum alloy 2 mm, 300 mm long, end fitting 150 mm. 1mm aluminum plate, DTU-compliant diameter.

Sherpal^® Mechanical fixing

Aluminum support structure system for technical roof-terrace equipment

Sherpal is an aluminium support system for technical equipment on roof terraces. It can be used for VMC, CTA or other types of engine equipment. The concrete slab attaches with the sealing complex.

Sherpal^® ballasted

Weighted support system for roof-top technical equipment

Sherpal® weighted is a support structure that allows drill-free installation of technical equipment on the waterproofing membrane of a roof terrace.

Sherpal® weighted is designed to support point equipment: VMC, air conditioning units, heat pumps, inverters, antennas or projectors.

Sherpal^® Antenna support

Antenna support structure, ballast, aluminum, for roof terrace

Sherpal® antenna support is a support structure that attaches the antennas in roof-terrace without piercing of the sealing complex.

It comes in three versions:

Sherpal^® Projector stand

Projector-mounted roof support system for roof terrace

Sherpal® Projector Bracket is a system that allows the installation of projectors on a roof terrace to illuminate the surroundings of a building.

It is easily integrated into the roof guard * to protect the operator in operation.

Barrial^® Mechanical fixing

Guardrail system for roof terrace inaccessible to the public

Whether it is the uprights, the heddles or the mounting shoes, this system allows perfect adjustment in all points and ease of implementation on site.

The different types of fixed railing (straight, angled, curved or folding up) are all part of a single system.

Barrial^® self standing  standard

Aluminum safety guard rail system for inaccessible public roofing

Barrial self-standing standard is in compliance with the current standards (NF E 85-015.)

It complies with French regulations relating to collective and permanent safety in the prevention of falls from a height, according to Decree No. 2004-924 of 1 September 2004 (Art. R.233-13-20).

Barrial^® self standing premium

Aluminum safety guard rail system for inaccessible public roofing

Barrial® self-standing premium is a weighted aluminum guardrail system for roof-decks which are inaccessible to the public. The handrail is adjustable.

The entire system, including counterweights, is guaranteed for 10 years.

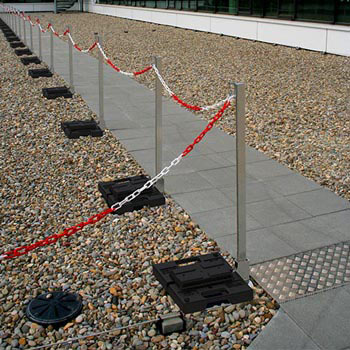

Delimit^®

Roof-top technical marking system

The advantages of Delimit® are :

• Without sealing drilling
• Number of chains to be chosen
• Removable and easily transportable

Panorama^®

Aluminum railing system for roof terrace and balcony

Panorama® is a railing system for balconies and roof-terraces.
It is suitable for categories A and B (residential and offices) according to Eurocode 1.

The system is delivered to measure with laying plan and parts identification.

Lotentic^®

Guardrail system for accessible roof terrace and balcony

Lotentic® is a railing system for balconies and roof-terraces.
It is suitable for categories A and B (residential and offices) according to Eurocode 1.
Its steel design looks good, corresponding with the current architectural trends.

Façanet^®

Aluminum facade sealing cover system

Façanet® is an aluminum facade sealing system, patented in France and abroad.

Façanet is a range of aluminum profiles which protects the expansion joints from the weather.

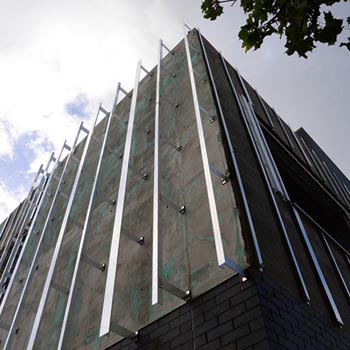

Iteal^®

Primary framework system for EWIS facades with cladding

The 2012 thermal regulations and its requirement to reduce the energy consumption of buildings is pushing designers and architects to look for ever more innovative and efficient solutions.

Drain^®

Drainage systems for asphalt water

Drain® ensures the user safety and improves the durability of the structures, while evacuating rainwater from the bridge.
The drain is an important element in drainage for civil engineering works.
