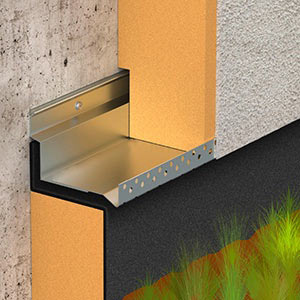

Solinet  Insulation is installed on buildings façades with External Wall Insulation System.

This system is made of patented aluminum, with a double function :

  • It protects the waterproofing upstand in compliance with DTU 20.12.
  • It constitutes of a track of start of insulation on façade.

It minimises the thermal exchange on the interface between the façade and the waterproofing upstand. The thermal bridge is reduced by 50% in comparison to a traditional installation (dissociation of the flashing and of the start of insulation track).

Assets of Solinet Insulation


  • Patented double function system
  • Thermal bridge reduced

System description


Profiles are delivered with a length of 3ml. In order to guarantee the waterproofing of the system, profiles and accessories (internal angles, external angles junction pieces) must be installed in accordance with standard practice.

Solinet is adapted for insulation which has a width between 80 and 220 mm.

Available models in standard : 80, 90, 100, 110, 120, 130, 140, 150, 160, 170, 180, 190, 200, 210 and 220 mm.

Application


Solinet is used for :

  • inaccessible flat roof (gravelled, vegetalised, ...)
  • accessible flat roof (with or without paving slab)
  • garden roof
  • protecting the burried waterproofing upstand.
solinet-depart-isolant-facade-isolation-thermique-exterieur-aluminium-protection-etancheite-solin-ITE-rail

solinet-depart-isolant-facade-isolation-thermique-exterieur-aluminium-protection-etancheite-solin-ITE-rail

Example of application


Accessories


Solinet  is adapted for start of insulation whose width is between 80 and 220 mm.

Junction and angled pieces are pre-fabricated in factory and insure :

  • a perfect profiles alignment
  • waterproofing at the profiles connections



solinet-depart-isolant-facade-isolation-thermique-exterieur-aluminium-protection-etancheite-solin-ITE-rail

Examples of implementation

solinet-depart-isolant-facade-isolation-thermique-exterieur-aluminium-protection-etancheite-solin-ITE-rail

Implementation for gravelled flat roof (non insulated upstand)


Implementation for garden (burried wall with insulated upstand)
