Assets of Rivnet


Rivnet is an aluminium roof edging and parapet wall raising system.


The roof edging strips have two essential functions :

  • The function of a drain or weather drip strip, to keep rainwater away from the external wall facings and thus protect them.
  • To provide a stop to mask the roof covering at the edge of the parapet wall.

Following the installation on a flat roof, the parapet wall raising allows the flat roof covering to be increased when the height of the parapet does not comply with DTU rules.
Available in raw aluminium or any other RAL colours.

System components


  • Standard length of 3000 mm. Delivered with the fixing holes already in place.
  • In case of parapet wall raising, the system can be complemented with the Rivnet "top-hat", which protects the waterproof raiser
  • Accessories : junction pieces, external angles, internal angles
  • Stainless steel Danivit fixings.
rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

Rivnet 80 series

rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

Edge strip


The 80 series contains 5 edging strips that will resolve most cases.


Has a 80 mm fixing flange with a downstand.

Profiles in standard lengths of 3000 mm, factory-drilled at 300 mm centres.

A cold sealing compound needs to be applied for proper adhesion and weatherproofing. The application of a cold sealing compound to the background and to the Rivnet are important for proper adhesion of the weatherproofing.

Rivnet® 80


Rivnet 80 series is available in 5 different dimensions :

  • 35/80
  • 50/80
  • 70/80
  • 115/80
  • 170/80
rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

System components


  • Standard lengths of 3000 mm
  • Junction
  • Stainless steel Danivit fixings
  • Internal angle
  • External angle

Example of application


Rivnet 35/80


  1. Rivnet 35/80*
  2. Junction 90° Bend* (also available flat for any other dimensions)
  3. Stainless steel Danivit fixings Ø 6
  4. Concrete support*
  5. Sealing complex in accordance with DTU

Profiles in standard lengths of 3000 mm, factory-drilled a 300 mm.

*a cold sealing compound is required to ensure the weatherproofing sticks.
rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

Rivnet EWIS

rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE
The shape and dimensions of Rivnet allows, in unique instances, a building's thermal insulation from the outside to be linked.
Profiles in standard lengths of 3000 mm, factory-drilled at 300 mm centres.

If your construction site's insulation requires another solution, visit the Bandonet page. Bandonet has a band course system for adaptedinsulated parapets.

Rivnet® 60/115


Downstand of 20 mm can hide the seal of the waterproof complex.rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

Rivnet® 60/160


Flange of 160 mm adapts insulated façades from the outside.

System components


  • Junction pieces
  • External angles
  • Internal angles
rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse

rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse

Example of usage


  1. Rivnet 60/160*
  2. Junction piece
  3. Stainless steel Danivit fixings Ø 6 (Double drilling possible on request)
  4. Concrete support*
  5. Insulation
  6. Covering
  7. Waterproof complex in accordance with DTU

Profiles in standard lengths of 3000 mmn factory-drilled at 300 mm centres
*a cold sealing compound is required to ensure the weatherproofing sticks.

Rivnet 80 series composed

rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE
A combination of several Rivnet pieces can create an upstand of any required height.
In this case, Rivnet is delivered in two parts. The holes are drilled speicifc to requirements allowing an easy installation.
In your orders, always state the type of composed Rivnet chosen.
The first figure always indicates the upper Rivnet, and the second indicates the lower Rivnet.

Rivnet® 80 series composed


From the 5 standard models, it is possible to composed 20 models.

Type of Rivnet : 50
Type of Rivnet : 50
Height visible (mm)
50/35/80 85
50/50/80 100
50/70/80 120
50/115/80 165
50/170/80 220

Type of Rivnet : 70
Height visible (mm)
70/35/80 105
70/50/80 120
70/70/80 140
70/115/80 185
70/170/80 240
Type of Rivnet : 70

Type of Rivnet : raise of 115*
Type of Rivnet : raise of 115*
Height visible (mm)
115/35/80 150
115/50/80 165
115/70/80 185
115/115/80 230
115/170/80 285

Type of Rivnet : 170*
Height visible (mm)
170/35/80 205
170/50/80 220
170/70/80 240
170/115/80 285
170/170/80 340


*"top-hat" Rivnet : Rivnet 80 series composed Option
Type of Rivnet : 170*

rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

System components


  • Profiles in standard length of 3000 mm
  • Junction piece
  • Stainless steel fixing Danivit
  • Internal angle
  • External angle

Example of application


Rivnet 170/50/80 composed


  1. Rivnet 170/80*
  2. Rivnet 50/80
  3. Junction pieces
  4. "top-hat"' Rivnet
  5. Stainless steel fixings Danivit Ø 6
  6. Concrete support*
  7. Galva steel curb (not provided)*
  8. Mastic adhesive
  9. Waterproof complex in accordance with DTU

Profiles in standard lengths of 3000 mm, factory-drilled at 300 centres.
*a cold sealing compound is required to ensure the weatherproofing sticks.
  rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

Rivnet 115 series monobloc

rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE
The 115 series contains 5 profiles that are characterised by a 115 mm fixing flange providing a stable bedding and bracket from the external wall.
Usable as an edge strip or as a parapet wall raising piece, the profiles of the 115 series come as one.

They have a common overlap of 42 mm and differ in their upstand of 43 to 158 mm.

The system is supplemented by the Chapeau Rivnet profile, which protects the roof covering at the top and is fixed by interlocking and polyurethane mastic adhesive.


Rivnet® Série 115



The 115 series contains 5 profiles that are characterised by a 115 mm fixing flange providing a stable bedding and bracket from the external wall.


  • 85/115
  • 100/115
  • 130/115
  • 170/115
  • 200/115
rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

System components


  • Profiles standard length of 3000 mm
  • 90° bend junction (upper and lower)
  • Chapeau Rivnet
  • Stainless steel fixing Danivit
  • Internal angle
  • External angle

Example of application


Rivnet 170/115 monobloc


  1. Rivnet 170/115
  2. 90° bend junction upper
  3. 90° bend junction lower
  4. Chapeau Rivnet
  5. Stainless steel fixing Danivit Ø 6
  6. Concrete support*
  7. Galva steel curb (not provided)
  8. Mastic adhesive
  9. Waterproof complex in accordance with DTU

Profiles in standard lengths of 3000 mm, factory-drilled at 300 centres.
*a cold sealing compound is required to ensure the weatherproofing sticks.
rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

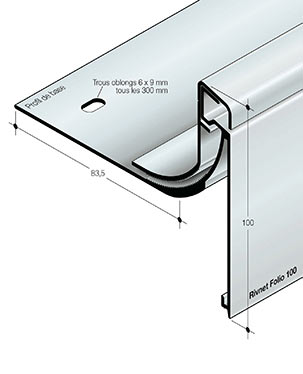

Rivnet® Folio

rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE
The rounded shape of the standard profile allows waterproofness to raise properly the waterproofness. The upper waterproofness is efficiently protected from the rain thanks to the protection cover, and stay in place thanks to the streaks.
Fixing is ensured with self-tapping screws 4,8 x 16 mm with waterproof washer.
The cover is installed by a simple rotation, and adapt itself for any types of waterproof upstand, from 1.2 mm to 10 mm of width.

Aesthetics :


Rivnet has a rounded line and a covering for terraces to look aesthetically pleasing.

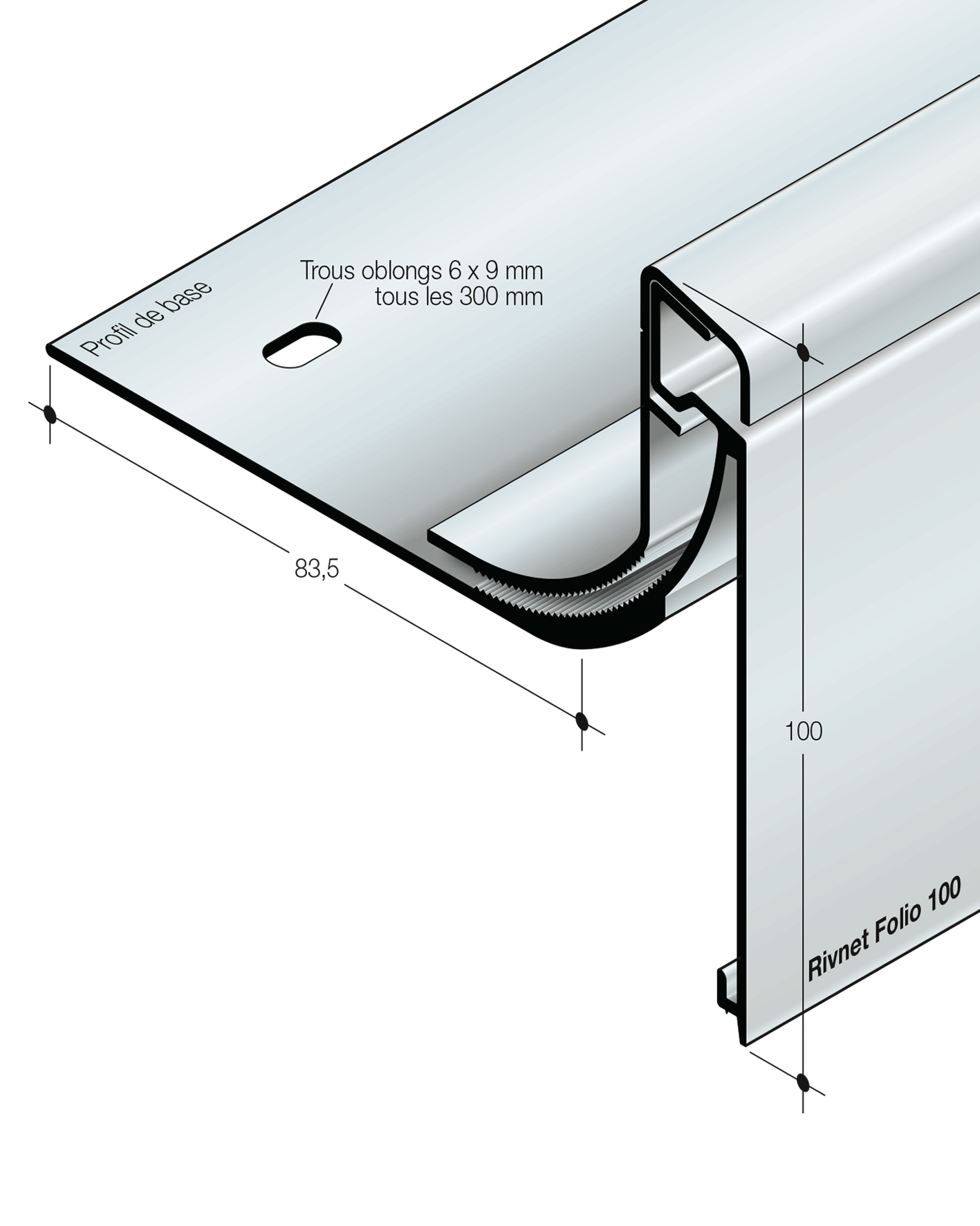

Rivnet® Folio


System description


  • a standard profile
  • a protection cover

Visible heights available :


  • 100 mm
  • 150 mm
rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE

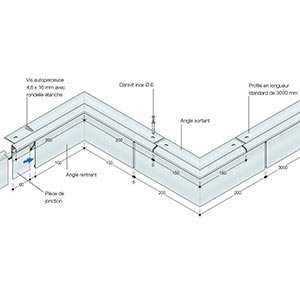

System components


  • Profile standard length of 3000 mm
  • Junction piece
  • Stainless steel Danivit fixings
  • Self-tapped screws with sealed washer
  • Internal angle
  • External angle

Example of application


Rivnet Folio 100


  1. Profile standard
  2. Protection cover
  3. Junction piece
  4. Stainless steel Danivit fixings Ø 6
  5. Self-tapping screws 4,8 x 16 mm with sealed washer (not provided)
  6. Concrete support
  7. Waterproof membrane
  8. Bridging straps

Profiles in standard lengths of 3000 mm, factory-drilled at 300 mm centres.

*a cold sealing compound is required to ensure the weatherproofing sticks.
rivnet-bande-rive-systeme-aluminium-bardage-rehausse-protection-releve-etanche-toiture-terrasse-etancheite-isolation-couverture-equerre-couvreur-etancheur-coulure-Riveco-ITE
