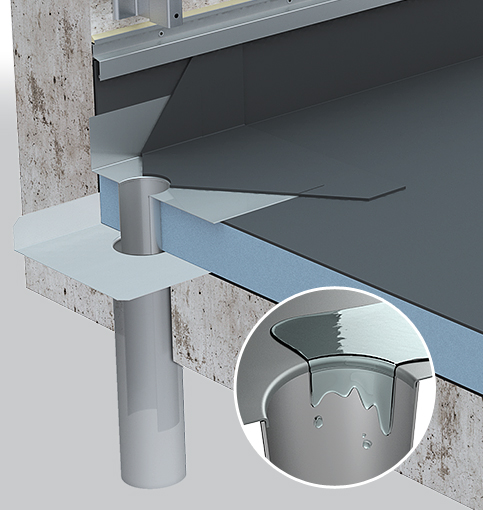

System presentation

neepal-solution-traversee-aluminium-etanche-toiture-terrasse-gouttiere-gouttieres-evacuation-crapaudine

Neepal's assets


  • No risk of leakage due to a patented non-welded system setting between the pipe and the plate.
  • Compatible with SBS & APP bitumen sealings, PVC synthetic sealing
  • No risk of corrosion
  • Conforms to DTU
  • Quick installation
  • Adaptable to standard PVC pipe
  • Environmentally friendly (without lead)
  • Installation possible on any kind of sealing support (concrete, steel, wood, insulation, ...)

Welded Neepal

neepal-solution-traversee-aluminium-etanche-toiture-terrasse-gouttiere-gouttieres-evacuation-crapaudine

Assets


  • Sealing guaranteed : assembly by automatic external welding, tested with liquid penetrant examination
  • Installation : malleable aluminium plate of 1 mm width -conforms to DTU

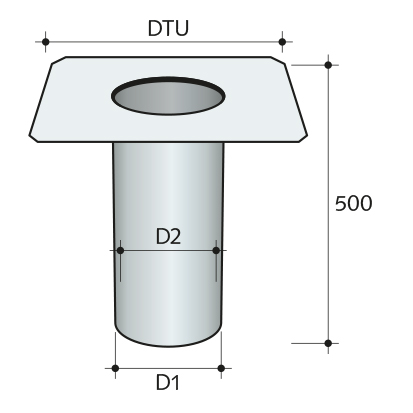

Standard dimensions


Product D1 D2
Neepal 125s* ø 110 ø 107
Neepal 140s* ø 130 ø 127
Neepal 160s* ø 150 ø 147
Neepal 200s* ø 190 ø 187

(other dimensions on request)

s* = assembly by automatic external welding, tested with liquid penetrant examination

Overflow Neepal

neepal-solution-traversee-aluminium-etanche-toiture-terrasse-gouttiere-gouttieres-evacuation-crapaudine

Assets


  • Environmentally friendly (without lead)

Dimensions standards


Product D1
Overflow Neepal 50s* ø 50
Overflow Neepal 60s* ø 60
Overflow Neepal 70s* ø 70

(other dimensions on request)

s* = assembly by automatic external welding, tested with liquid penetrant examination

Neepal® 3D
