The Aquadrop range is made of three elements


  • the collector
  • the rainwater pipe
  • the protector

The available aesthetic finish and color palette allows a decorative element to either highlight the architectural style or blend in the façade. Aquadrop® is adaptable to all kinds of flat roof building. The products can be used together or separately. The Aquadrop® protector protects the base too.


aquadrop-collecteur-descente-eau-pluviale-systeme-aluminium-etanche-toiture-terrasse-facade-esthetique-boite-cuvette-branchement-raccordement-invisible-design

Assets of Aquadrop®


  • Aesthetic finish
  • Easy installation
  • All RAL colors are available (Danilac color chart). The powder coating of the Aquadrop range is made in our factory which ensures a single color.
  • Innovative and discrete fixings.
aquadrop-collecteur-descente-eau-pluviale-systeme-aluminium-etanche-toiture-terrasse-facade-esthetique-boite-cuvette-branchement-raccordement-invisible-design

Aquadrop collector

aquadrop-collecteur-descente-eau-pluviale-systeme-aluminium-etanche-toiture-terrasse-facade-esthetique-boite-cuvette-branchement-raccordement-invisible-design

Aquadrop collector


Aquadrop® collector is a water box with a cubic shape. Sandard height, width and depth dimensions are 200, 250 or 300 mm. The Aquadrop® rainwater collector is installed in façade. The rainwater from the falls through this and down through the "rainwater desenct." The robustness of the aluminum 20/10 (the material used) guarantees its durability.

Aquadrop® collector is available in three possible dimensions (L x P x H, with L = width, P = depth, H = height) :

  • 200 x 200 x 200 mm
  • 250 x 250 x 250 mm
  • 300 x 300 x 300 mm

with three diameters :

  • Ø 75 mm (for descent Ø 80 mm)
  • Ø 95 mm (for descent Ø 100 mm)
  • Ø 110 mm (for descent Ø 120 mm)

Options


Overflow


The overflow controls any overflowing water.

Leaves guard grid


The grid is designed to stop leaves and debris from clogging the tubes. It's quick and easy to install and doesn't require any drilling, screwing or glue.

Steps to install the leaves guard grid:

  1. Piece delivered flat
  2. Support fenders bend
  3. Install the grid at the bottom of the collector
aquadrop-collecteur-descente-eau-pluviale-systeme-aluminium-etanche-toiture-terrasse-facade-esthetique-boite-cuvette-branchement-raccordement-invisible-design

Aquadrop drainpipe

aquadrop-collecteur-descente-eau-pluviale-systeme-aluminium-etanche-toiture-terrasse-facade-esthetique-boite-cuvette-branchement-raccordement-invisible-design
The Aquadrop® rainwater drainpipe is an aluminum system with a diameter of 80, 100 or 120 mm (external diameter).

Aquadrop drainpipe comprise for each diameter :

  • Drainpipe tubes
  • 72° or 85° bends
  • Fixing collars (2 units minimum for each 3 m tube).

Upper-part flare


The drainpipe tubes have a flaring on the upper-part, to allow connect either with an additional length or with a bend.

Lower-part


Bends have a lower part in order to self-adjust in a shorter drainpipe tube to minimise falls.
aquadrop-collecteur-descente-eau-pluviale-systeme-aluminium-etanche-toiture-terrasse-facade-esthetique-boite-cuvette-branchement-raccordement-invisible-design

aquadrop-collecteur-descente-eau-pluviale-systeme-aluminium-etanche-toiture-terrasse-facade-esthetique-boite-cuvette-branchement-raccordement-invisible-design

Innovation


Discrete fixing collar

Clutter table of bends

 Product Height Width
Bend 85° Diameter 80 177 mm 161 mm
Bend 85° Diameter 100 225 mm 201 mm
Bend 85° Diameter 120 271 mm 244 mm
Bend 72° Diameter 80 187 mm 134 mm
Bend 72° Diameter 100 216 mm 154 mm
Bend 72° Diameter 120 277 mm 199 mm

Aquadrop protector

aquadrop-collecteur-descente-eau-pluviale-systeme-aluminium-etanche-toiture-terrasse-facade-esthetique-boite-cuvette-branchement-raccordement-invisible-design

Aquadrop protector


Aquadrop® protector protects from impacts. It is delivered with a length of 1000 mm.
There are three models depending on the diameter of what needs protecting.

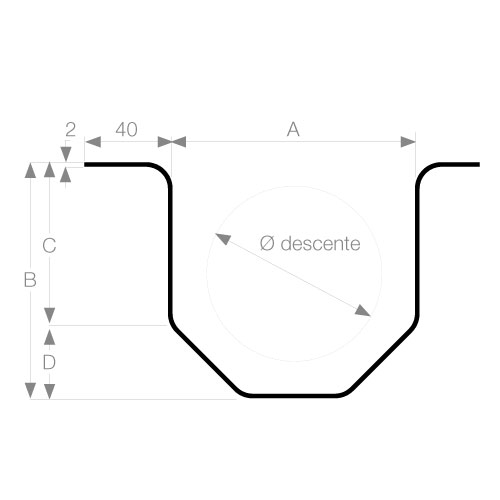

Product  Ø descent A B C D
Protector 110 80 110 105 72,5 32,5
Protector 130 100 130 125 86,6 38,4
Protector 150 120 150 155 110,7 44,3
